Orifice Flanges Manufacturers, Exporters & Suppliers in India.

304/304L Orifice Flanges, 310/310S Orifice Flanges, 316/316L Orifice Flanges, 317/317L Orifice Flanges, 321/321H Orifice Flanges, 347/347H Orifice Flanges, 446 Orifice Flanges.

Stainless Steel, Alloy Steel, Carbon Steel, Duplex steel, Copper Nickel Alloy, Hastelloy, Titanium, Alloy 20, Monel & Inconel Orifice Flanges.

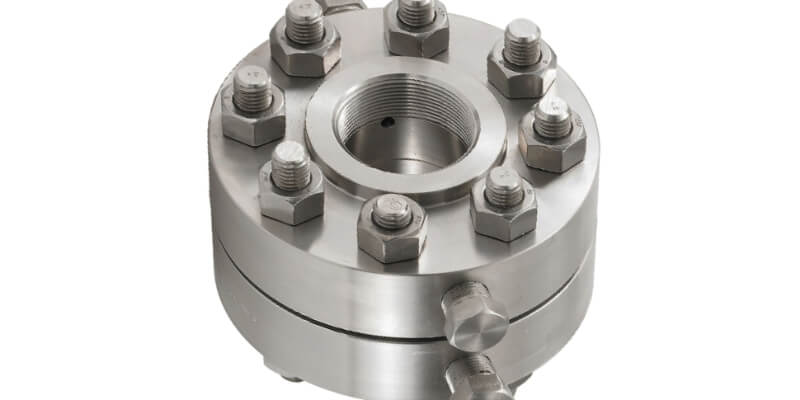

The function of an orifice flange is to provide access to a line for metering of gases or liquids. An orifice plate is clamped between a pair of flanges when installed in a line and the whole assembly is refer to as an orifice flange union. Jack-screws within the assembly facilitate removal of the orifice plate. The orifice plate, the metering device, consists of a thin plate with a concentric, square edge, circular hole in the centre. Two pressure tap-holes are drilled in each flange to measure pressure difference through the orifice.



Material of Construction Standard Grades
Stainless Steel Orifice Flanges ASTM A182 , A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Orifice Flanges ASTM A105 Gr. F42,46,52,56,60,65,70
Alloy Steel Orifice Flanges ASTM A182 F1,F5,F9,F11,F22,F91
Nickel Alloy Orifice Flanges ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),
Copper Alloys Orifice Flanges ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
Low Temperature Carbon Steel Orifice Flanges ASTM A350 LF2 , LF3
Duplex Steel Orifice Flanges ASTM A182, A240 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61
