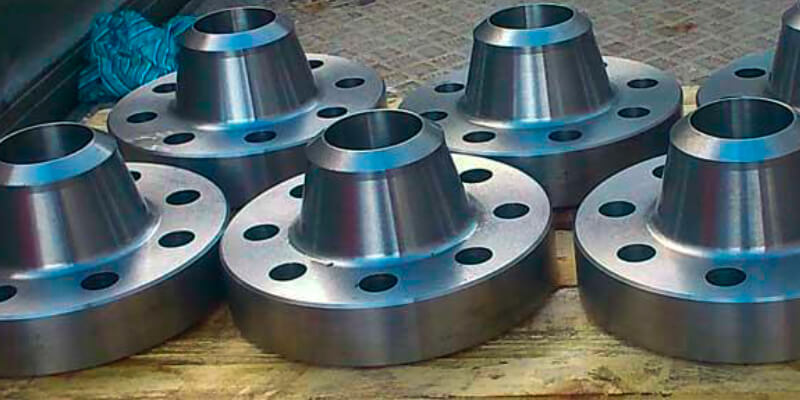

MANUFACTURER OF STAINLESS STEEL 347 FLANGES | ASTM 182 STAINLESS STEEL 347 FLANGES | ASTM 240 STAINLESS STEEL 347 FLANGES | ANSI/ASME B16.1 STAINLESS STEEL 347 FLANGES

STAINLESS STEEL 347 FLANGES Exporter | STAINLESS STEEL 347 FLANGES Supplier | STAINLESS STEEL 347 FLANGES Manufacturer

UNIFLEX INDIA are one of the principle producers and exporters of unrivalled quality STAINLESS STEEL 347 FLANGES, These STAINLESS STEEL 347 FLANGES in run of the typical particulars, which finds applications in high requesting for business undertakings and divisions, particularly high temperature and acidic organizations. Our STAINLESS STEEL 347 FLANGES are strong, tough and at standard with overall quality and wellbeing models. We are powerful in offering our reputed clients with biggest quality STAINLESS STEEL 347 FLANGES . Our offered STAINLESS STEEL 347 FLANGES are produced using high survey tough steel as the crude material to ensure tip top and whole deal usage. Further, these 347H FLANGESare comprehensively used as machined parts, pump shafts, valves, clasp and handles.

We exports  Stainless Steel 347 Forged Flanges, Stainless Steel 347 Blind Flanges, Stainless Steel 347 Reducing Flanges, Stainless Steel 347 Orifice Flanges, Stainless Steel 347 Socket Weld Flanges, Stainless Steel 347 Slip On Flanges, Stainless Steel 347 Flat Flanges, Stainless Steel 347 Lapped Joint Flanges, Stainless Steel 347 SWRF Flanges, Stainless Steel 347 Square Flanges, Stainless Steel 347 Threaded Flanges, Stainless Steel 347 Weld Neck Flanges Series A or B, Stainless Steel 347 WNRF Flanges, Stainless Steel 347 Expander Flanges, Stainless Steel 347 High Hub Blinds Flanges, Stainless Steel 347 Spectacle Blinds Flanges, Stainless Steel 347 Loose Flanges, Stainless Steel 347 RTJ Flanges, Stainless Steel 347 Screwed Flanges, Stainless Steel 347 Weld Neck Flanges, Stainless Steel 347 Flange Facing Type & Finish, Stainless Steel 347 SORF Flanges, Stainless Steel 347 Groove & Tongue Flanges, Stainless Steel 347 Long Neck Weld Flanges, Stainless Steel 347 Spades Ring Spacers Flanges, Stainless Steel 347 Ring Type Joint Flanges, Stainless Steel 347 Weldo / Nipo Flanges.

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
347H S34700 1.4550
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
347 515 205 40 92 201
Designation A 182 / A 240, SA 182 / SA 240
Class 150#, 300#, 400#, 625#, 900#, 1500# & 2500#
Size 1/2″ NB TO 48″ NB
Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings, ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
Grade A 182 347
Grade C Mn Si P S Cr Mo Ni N Other
347 min.
max
0.08 2.00 0.75 0.045 0.030 17.0
19.0
9.0
13.0
Nb=10(C+N)
1.0
Grade
Density (g/cm3)
Elastic Modulus (GPa)
Mean Coefficient of Thermal Expansion (μm/m/°C)
Thermal Conductivity (W/m.K)
Specific Heat 0-100°C (J/kg.K)
Electrical Resistivity (nΩ.m)
0-100°C
0-315°C
0-538°C
at 100°C
at 500°C
347
7.93
190-210
16-18
17.2
18.6
16.1
22.2
500
70-73
