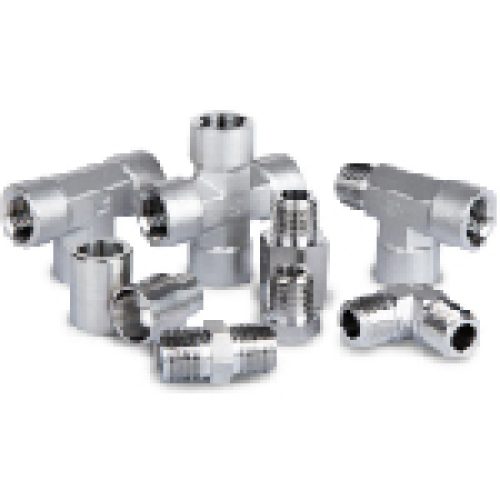

Stainless Steel Forged Threaded Fittings Manufacturer & Exporter of Forged Threaded Fittings.
Uniflex India manufacture and export threaded fittings that exhibit superior functioning. These threaded pipe fittings are designed & developed to meet diverse working conditions. These threaded fittings provide permanent welded connections for critical applications. Threaded joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal
diameter is NPS 2 or smaller. The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.
- Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
- Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel.
- They are available in three pressure ratings: 2000lbs, 3000lbs and 6000lbs.
NPT Thread
All fittings on this page are described, are provided with NPT thread, ASME B1.20.1. The American National Pipe Thread Tapered, is the best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal. NPT has a tapered male and female thread which seals with Teflon tape or jointing compound. Dimensions of American Taper Pipe Thread, with Sealant Compound.
Material Type
| DN NPT | Major Diameter mm | Tapping Drill Size mm | TPI | Pitch mm |
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1 1/4″ | 41.985 | 37.00 | 11.5 | 2.209 |
| 1 1/2″ | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2 1/2″ | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3 1/2″ | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
TYPES & APPLICATIONS

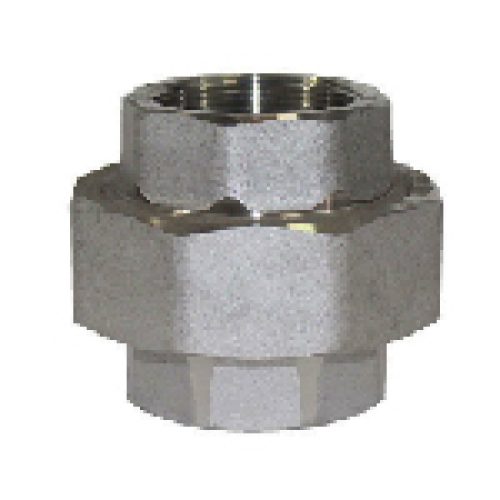

| » | Union (3000#) |

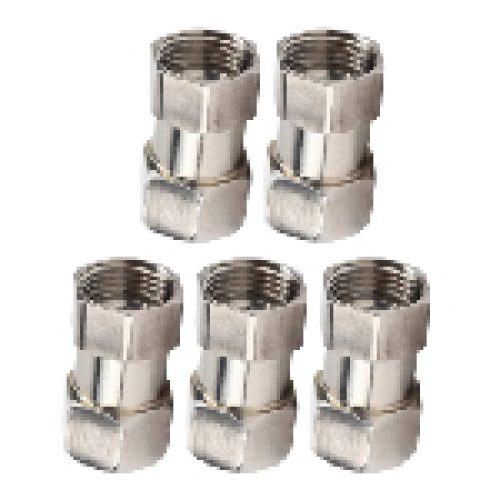

| » | Reducer Insert (3000#, 6000#) |

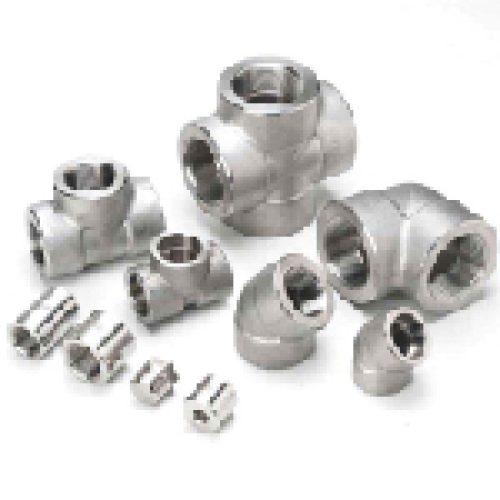

| » | Socket Welding Fittings |

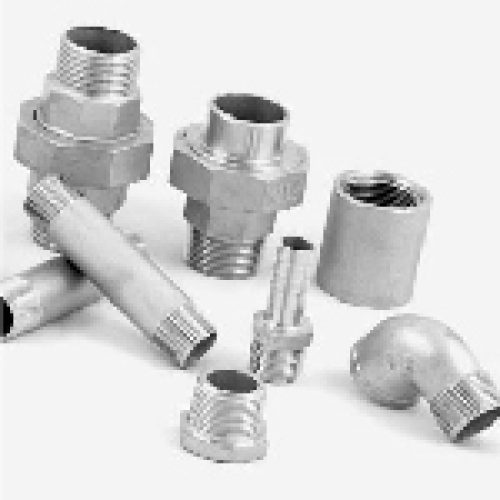

| » | Forged Threaded Fittings |
| » | Plugs And Bushings |
