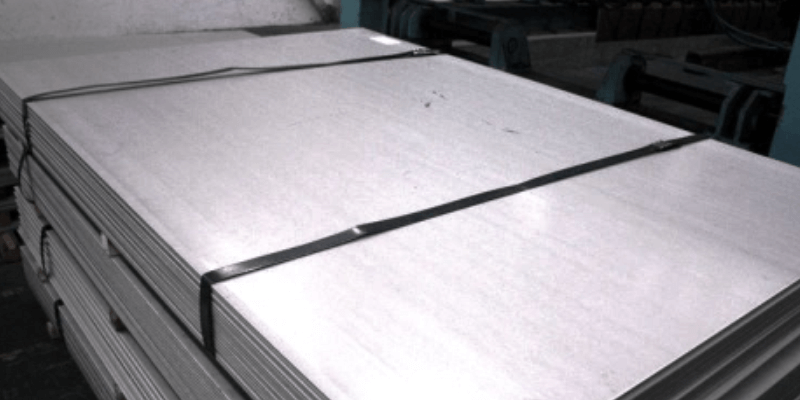

Stainless Steel 316L Plates & Sheets

//Stainless Steel 316L Plates & Sheets
Stainless Steel 316L Plates & Sheets 2017-08-29T17:53:15+00:00

MANUFACTURER OF STAINLESS STEEL 316L PLATES & SHEETS | ASTM A480 STAINLESS STEEL 316L SHEETS & PLATES | ASTM A240 STAINLESS STEEL 316L SHEETS & PLATES | STAINLESS STEEL 316L STRIPS | STAINLESS STEEL 316L COILS MANUFACTURER

SS 316L Plates And Sheets Exporter | SS 316L Plates And Sheets Supplier | SS 316L Plates And Sheets Manufacturer

UNIFLEX INDIA are one of the principle producers and exporters of unrivalled quality Stainless Steel  316 plates, Stainless Steel  316 sheets in run of the typical particulars, which finds applications in high requesting for business undertakings and divisions, particularly high temperature and acidic organizations. Our STAINLESS STEEL  316 PLATES & SHEETS are strong, tough and at standard with overall quality and wellbeing models. We are powerful in offering our reputed clients with biggest quality STAINLESS STEEL  316 PLATES & SHEETS. Our offered Stainless Steel  316 plates and sheets are produced using high survey tough steel as the crude material to ensure tip top and whole deal usage. Further, these plates and sheets are comprehensively used as a piece of compound and petrochemical organizations.

We Export UNS S31603 STAINLESS STEEL 316L SHEET AND PLATE , DIN 1.4404 / 1.4435 STAINLESS STEEL 316L SHEET AND PLATE , STAINLESS STEEL 316L UNS S31603 STRIPS , STAINLESS STEEL 316L UNS S31603 COILS , STAINLESS STEEL 316L PLATES, STAINLESS STEEL 316L SHEETS, STAINLESS STEEL 316L SHEETS, STAINLESS STEEL 316L PERFORATED SHEET, STAINLESS STEEL 316L CHEQUERED PLATE, STAINLESS STEEL 316L ROLLS, STAINLESS STEEL 316L RING, STAINLESS STEEL 316L CIRCLES, STAINLESS STEEL 316L COILS, STAINLESS STEEL 316L STRIPS, STAINLESS STEEL 316L FLAT, STAINLESS STEEL 316L BLANK , STAINLESS STEEL 316L PROFILE, STAINLESS STEEL 316L FOILS.

Steel grades AISI316L (1.4404)
Production Hot-rolled
Standard ASTM A240/A480
Thickness Standard: 3.0mm-30.0mm
Over 30.0mm on request
Width 1000mm, 1250mm, 1500mm, 2000mm, Other sizes on request
Package weight 1.0-4.0 tonnes
Application Medical equipment, Food industry, Construction material, Kitchen utensils, BBQ grill, Building construction, Electric equipment,
Grade C Mn Si P S Cr Mo Ni N
316L min. 16.0 2.00 10.0
max. 0.08 2.00 0.75 0.045 0.03 18.0 3.00 14.0 0.10
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40% 95 217
Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740
Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740
Steel grades AISI316L (1.4404)
Production Cold-rolled
Standard ASTM A240/A480
Thickness Min: 0.4mm Max: 6.0mm
Width 1000mm, 1250mm, 1500mm, 2000mm, Other sizes on request
Finish 2B, BA, MATT, M.PVC, N4, N5, SB, HR, N8, Oil base wet polished, Both sides polished available
Coating PVC coating normal/laser
Film: 100 micrometer
Color: black/white
Package weight 1.0-2.2 tonnes
Application Medical equipment, Food industry, Construction material, Kitchen utensils, BBQ grill, Building construction, Electric equipment,

TYPES OF STAINLESS STEEL 316L PLATES & SHEETS : –

  • Stainless Steel 316L Sheets Plates
  • SS 316L Sheets Plates
  • Stainless Steel UNS S316L Plates
  • SS UNS S316L Sheets Plates
  • Stainless Steel Din 1.4404 Plates
  • SS Din 1.4404 Sheets
