Socket Weld Flanges ASME B16.5 Manufacturers, Exporters & Suppliers in India.

304/304L Socket Weld Flanges (SWRF), 310/310S Socket Weld Flanges (SWRF), 316/316L Socket Weld Flanges (SWRF), 317/317L Socket Weld Flanges (SWRF), 321/321H Socket Weld Flanges, 347/347H Socket Weld Flanges, 446 Socket Weld Flanges.

Stainless Steel, Alloy Steel, Carbon Steel, Duplex steel, Copper Nickel Alloy, Hastelloy, Titanium, Alloy 20, Monel & Inconel Socket Weld Flanges.

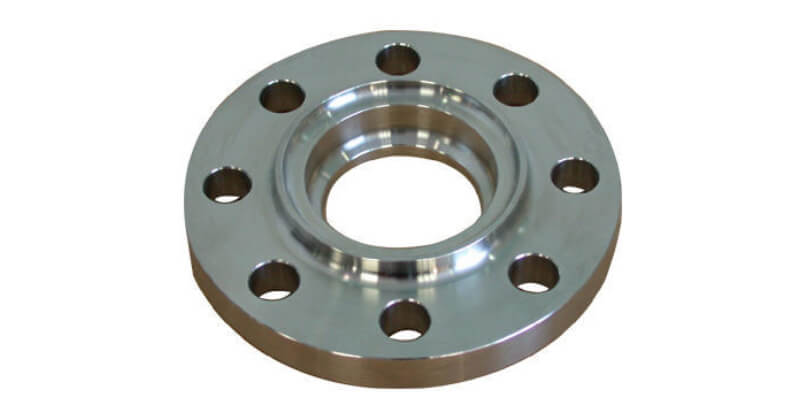

This is similar to a slip-on flange in outline, but the bore is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The Socket Weld Flange is attached to the pipe by a fillet weld around the hub of the flange. An optional interval weld may be applied in high stress applications. It’s biggest use is in high pressure systems such as hydraulic and steam lines.



Material of Construction Standard Grades
Stainless Steel Socket Weld Flanges ASTM A182 , A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Socket Weld Flanges ASTM A105 Gr. F42,46,52,56,60,65,70
Alloy Steel Socket Weld Flanges ASTM A182 F1,F5,F9,F11,F22,F91
Nickel Alloy Socket Weld Flanges ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),
Copper Alloys Socket Weld Flanges ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
Low Temperature Carbon Steel Socket Weld Flanges ASTM A350 LF2 , LF3
Duplex Steel Socket Weld Flanges ASTM A182, A240 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61



Dimensional Tolerances of Socket Weld Flanges ASME B16.5



Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
Inside Diameter
≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore
Same as for Inside Diameter
Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0
Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
