Slip On  Flanges (ASME B16.5) Manufacturers, Exporters & Suppliers in India.

304/304L Slip on Flanges ((SORF), 310/310S Slip on Flanges (SORF), 316/316L Slip on Flanges (SORF), 317/317L Slip on Flanges (SORF), 321/321H Slip on Flanges(SORF), 347/347H Slip on Flanges(SORF), 446 Slip on Flanges (SORF).

Stainless Steel, Alloy Steel, Carbon Steel, Duplex steel, Copper Nickel Alloy, Hastelloy, Titanium, Alloy 20, Monel & Inconel Slip On Flanges.

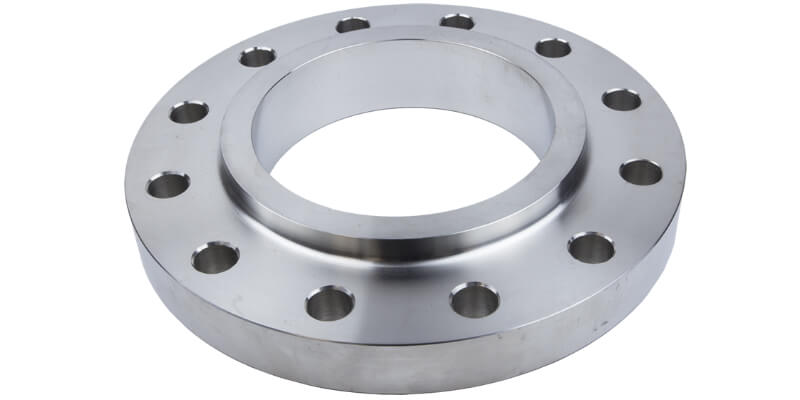

The flange is slipped over the pipe and then welded both inside and outside to provide sufficient Strength and prevent leakage. This flange is used in preference to weld necks by many users because of its lower cost and the fact that less accuracy is required when cutting pipe to length.



Material of Construction Standard Grades
Stainless Steel Slip on Flanges ASTM A182 , A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Slip on Flanges ASTM A105 Gr. F42,46,52,56,60,65,70
Alloy Steel
Slip on Flanges
ASTM A182 F1,F5,F9,F11,F22,F91
Nickel Alloy
Slip on Flanges
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),
Copper Alloys Slip on Flanges ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
Low Temperature Carbon Steel Slip on Flanges ASTM A350 LF2 , LF3
Duplex Steel
Slip on Flanges
ASTM A182, A240 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61





Dimensional Tolerances of Slip On Flanges ASME B16.5
Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
Inside Diameter
≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore
Same as for Inside Diameter
Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0
Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
