MANUFACTURER OF NIMONIC 90 ROUND BARS | NIMONIC 90 ROUND BARS | NIMONIC 90 HEX BAR | NIMONIC 90 FORGED BAR | NIMONIC 90 SQUARE BAR | BS HR 5 NIMONIC 90 ROUND BARS | BS HR 504 NIMONIC 90 ROUND BARS

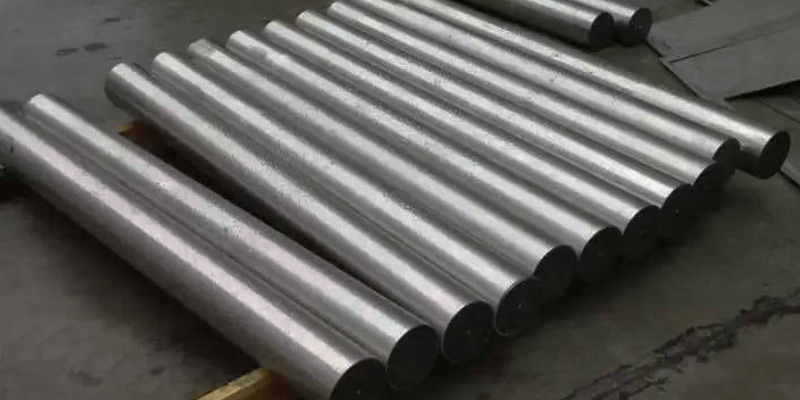

NIMONIC 90 Round & Square Bars Exporter | NIMONIC 90 Round & Square Bars Supplier | NIMONIC 90 Round & Square Bars Manufacturer
UNIFLEX INDIA are one of the principle producers and exporters of unrivalled quality NIMONIC 90 Round & Square Bars, These NIMONIC 90 Round & Square Bars in run of the typical particulars, which finds applications in high requesting for business undertakings and divisions, particularly high temperature and acidic organizations. Our NIMONIC 90 Round & Square Bars are strong, tough and at standard with overall quality and wellbeing models. We are powerful in offering our reputed clients with biggest quality NIMONIC 90 Round & Square Bars . Our offered NIMONIC 90 Round & Square Bars are produced using high survey tough steel as the crude material to ensure tip top and whole deal usage. Further, these NIMONIC 90 Round & Square Bars are comprehensively used as machined parts, pump shafts, valves, clasp and handles.
We exports Nimonic 90 Rods, Nimonic 90 Round Bars, UNS N07090 Bars , Nimonic 90 Round Bars, Nimonic 90 Rods, Nimonic 90 Steel Polish Bars, AISI Nimonic 90 UNS N07090 Black Bars, Nimonic 90 Spring Steel Bars, Nimonic 90 Bright Bar, Nimonic 90 Forged Round Bars, Nimonic 90 Threaded Bars , Nimonic 90 Cold Drawn & Polished Square Bars , Nimonic 90 Cold Drawn & Polished Square Bars , Nimonic 90 WERKSTOFF NR. 2.4632 Round Bars, Nimonic 90 Hexagon Bars, Nimonic 90 Cold Drawn Bars , Nimonic 90 Cold Drawn Bars , Nimonic 90 Flat Bars, AISI ASTM Nimonic 90 UNS N07090 Round Bar, Cold Rolled Nimonic 90 UNS N07090 Hot Forged Bar.
| STANDARD | Alloy | WERKSTOFF NR. | UNS |
|---|---|---|---|
| Nimonic 90 | Alloy 90 | 2.4632 | N07090 |
| Temperature | ksi | MPa |
|---|---|---|
| 595°C / 1100°F | 94 | 650 |
| 650°C / 1200°F | 73 | 500 |
| 705°C / 1300°F | 51 | 350 |
| 760°C / 1400°F | 32 | 220 |
| 815°C / 1500°F | 16 | 110 |
| Standard | Nimonic 90 |
|---|---|
| Round Bar Size | 10mm to 200mm |
| Round Bar Specification | BS HR 5, BS HR 504, DIN 17752, AECMA PrEN2306, AECMA PrEN2307, AECMA PrEN2402, ISO 9723-25 |
| Grade | Ni | Cr | Ti | Si | Cu | Fe | C | Al | Mn | Co | B | Zr | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nimonic 90 | Bal | 18.0-21.0 | 2.00-3.00 | 1.0max | 0.20max | 1.50 max | 0.13 max | 2.00 max | 1.0max | 15.00-21.00 | 0.02 max | 0.15 max | 0.015 max |
| Density | 8.18g/cm³ |
|---|---|
| Melting Point | 1370°C |
| Coefficient of Expansion | 12.7 μm/m °C (20 – 100°C) |
| Modulus of Rigidity | 82.5 kN/mm² |
| Modulus of Elasticity (Annealed + Aged) (Spring Temper + Aged) |
213 kN/mm² 227 / 240 kN/mm² |
Cities we deliver NIMONIC 90 Round & Square Bars to:
Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
Countries we deliver NIMONIC 90 Round & Square Bars to:
India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia
