Groove & Tongue Flanges Manufacturers, Exporters & Suppliers in India.

304/304L Groove & Tongue Flanges, 310/310S Groove & Tongue Flanges, 316/316L Groove & Tongue Flanges, 317/317L Groove & Tongue Flanges, 321/321H Groove & Tongue Flanges, 347/347H Groove & Tongue Flanges, 446 Groove & Tongue Flanges.

Stainless Steel, Alloy Steel, Carbon Steel, Duplex steel, Copper Nickel Alloy, Hastelloy, Titanium, Alloy 20, Monel & Inconel Groove & Tongue Flanges.

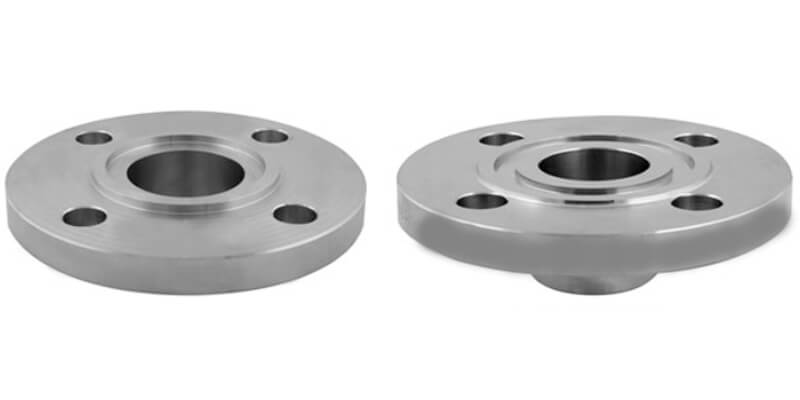

The Groove and Tongue faces of this flanges must be matched. One flange face has a raised ring (Tongue) machined onto the flange face while the mating flange has a matching depression (Groove) machined into it’s face. Tongue-and-groove facings are standardized in both large and small types. They differ from male-and-female in that the inside diameters of the tongue-and-groove do not extend into the flange base, thus retaining the gasket on its inner and outer diameter. These are
commonly found on pump covers and Valve Bonnets. Tongue-and-groove joints also have an advantage in that they are self-aligning and act as a reservoir for the adhesive. The scarf joint keeps the axis of loading in line with the joint and does not require a major machining operation. General flange faces such as the RTJ, T&G and the F&M shall never be bolted together. The reason for this is that the contact surfaces do not match and there is no gasket that has one type on one side and another type on the other side.



Material of Construction Standard Grades
Stainless Steel Tongue & groove Flanges ASTM A182 , A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Tongue & groove Flanges ASTM A105 Gr. F42,46,52,56,60,65,70
Alloy Steel Tongue & groove Flanges ASTM A182 F1,F5,F9,F11,F22,F91
Nickel Alloy Tongue & groove Flanges ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),
Copper Alloys Tongue & groove Flanges ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
Low Temperature Carbon Steel Tongue & groove Flanges ASTM A350 LF2 , LF3
Duplex Steel Tongue & groove Flanges ASTM A182, A240 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61
